Wildsync - MIX6.2

Wildsync - MIX6.2

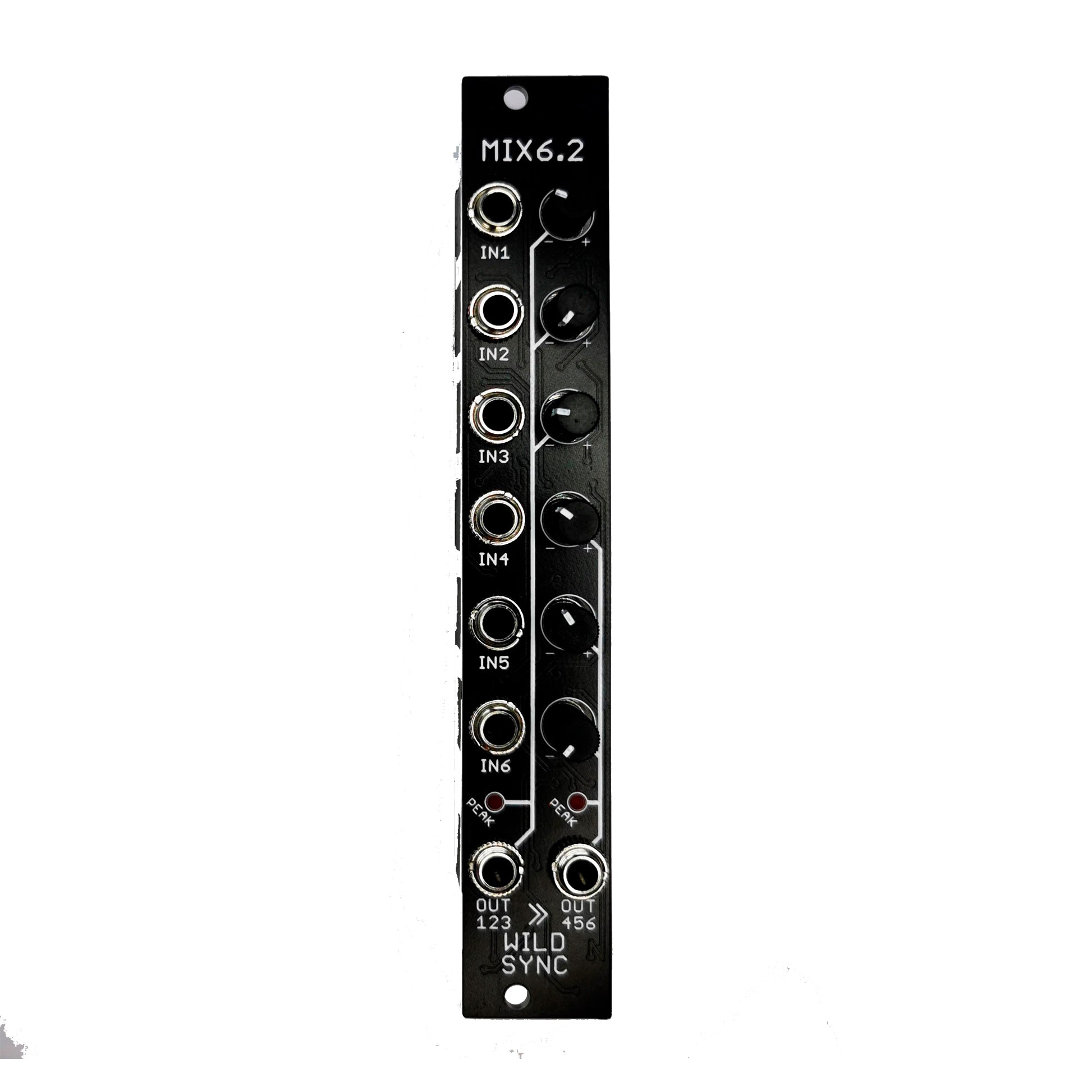

The MIX6.2 is a 6-channel Eurorack signal mixer designed for maximum flexibility in your modular setup. It features 6 inputs and two outputs, where outputs 1-2-3 are mixed into output 4-5-6 if nothing is plugged into the 1-2-3 output jack. This allows the unit to function as either two separate 3-channel mixers or one combined 6-channel mixer.

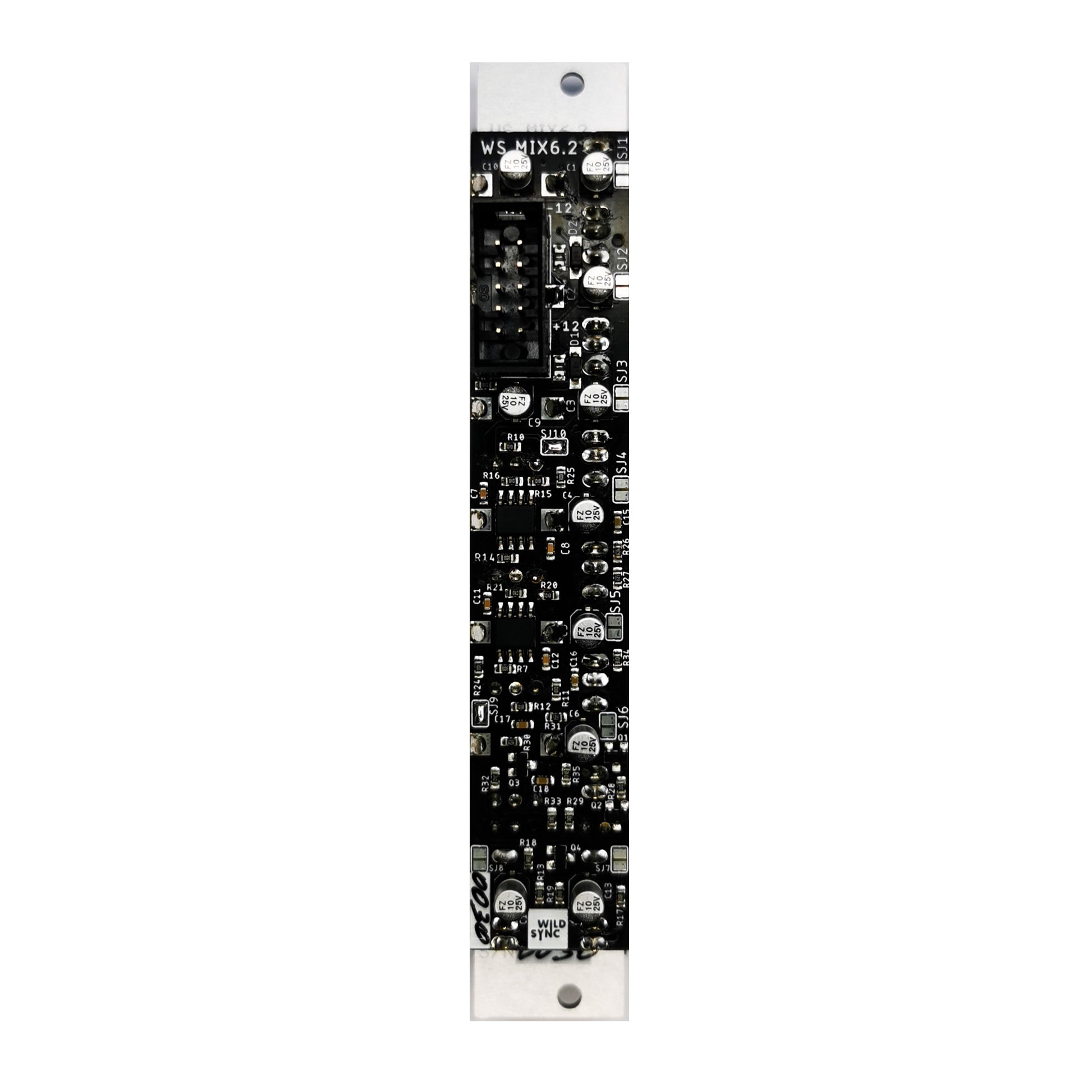

By default, the MIX6.2 is built to mix audio signals, but it can be modified to mix CV signals instead via 8 solder jumpers on the back. The mixer offers a gain level of 1X, which can be increased to 2X on channels 1-2-3 or 4-5-6 by soldering jumpers for added output strength.

A compact and versatile module that adapts to both audio and modulation needs in any modular system.

• 6 inputs, 2 outputs
• Functions as two 3-channel mixers or one 6-channel mixer
• CV mixing capable through solder jumper modification
• Adjustable gain: 1X or 2X per channel group
• Width: 6 HP
• Designed and manufactured in Warsaw, Poland

Available at Second Floor Stuff – Warsaw.

Dimensions: 4 HP, 23 mm deep
Current Draw: 10 mA +12V, 10 mA -12V

Available in Warsaw at Second Floor Stuff.
