Wildsync - FATMOOG VCF/VCA

Wildsync - FATMOOG VCF/VCA

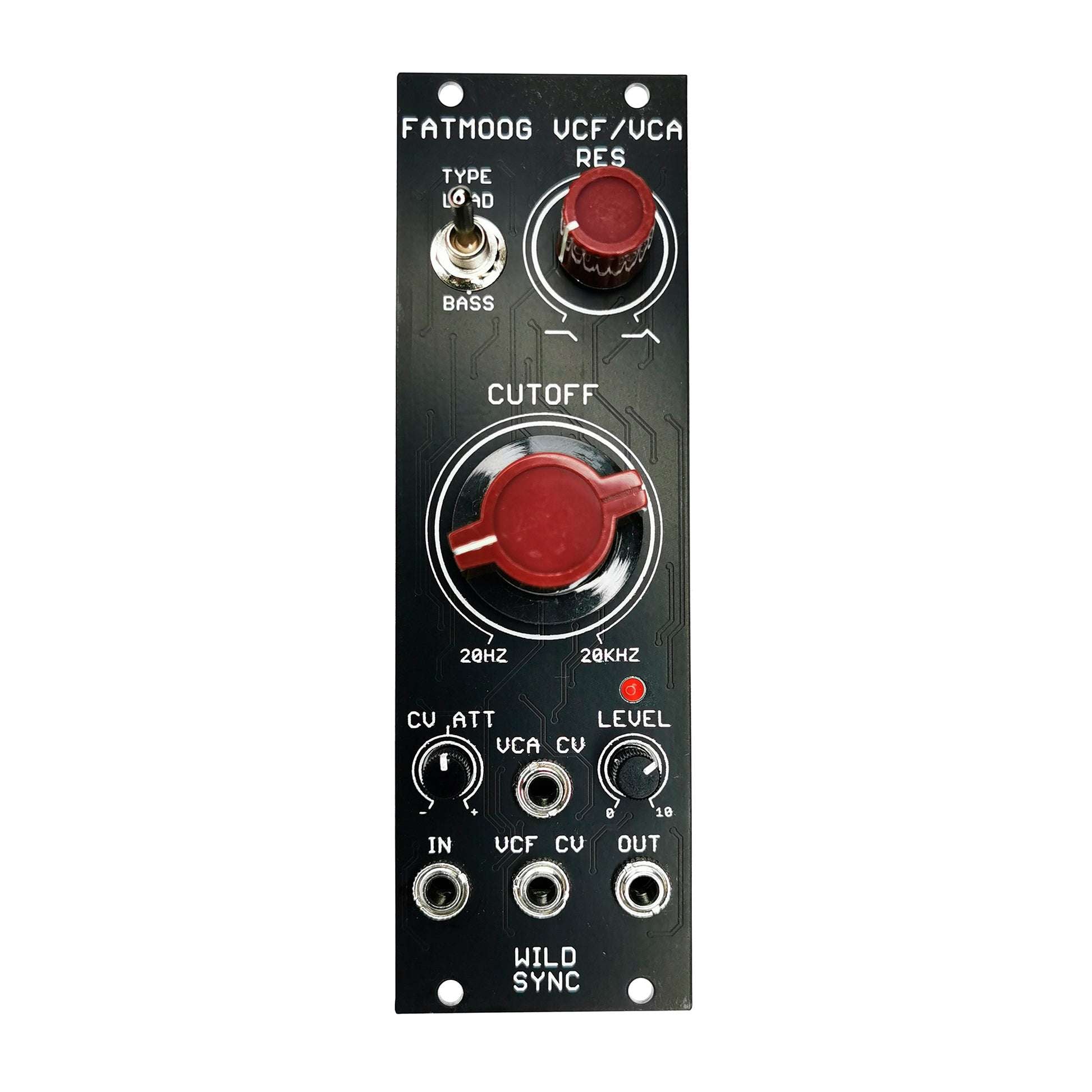

The Wildsync FATMOOG VCF/VCA module is a powerful addition to your Eurorack system, combining the legendary sound of the Moog ladder filter with an integrated VCA. This module can become the heart of your synthesizer, imparting a distinctive analog character typical of classic Moog synthesizers.

The module features a voltage-controlled 24 dB/octave ladder filter, enriching your sound with harmonics and providing the signature "fat" tone that Moog filters are known for. The addition of the VCA makes this module a compact and efficient output stage for your synthesis setup, allowing for dynamic control of your audio signals.

With this module, you can create a wide range of sounds: pair it with a VCO, mixer, and envelope generator to craft a complete bassline synthesizer, or crank up the resonance and add an envelope for punchy bass drums and toms.

• Voltage controlled 24 db/octave ladder filter
• Attenuverter on filter CV input
• Level attenuator on VCA CV input
• 2 waveshaper mods: Lead (prodigy) and Bass (minitaur)
• Output peak indicator with adjustable peak level setting
• VCA range from 0 to 8V

Horizontal pitch: 8 HP
Depth: 30 mm

Current Draw:
32 mA +12V
27 mA -12V

Available in Warsaw at Second Floor Stuff.
