Wildsync - ADSR 4001

Wildsync – ADSR 4001

The WILDSYNC ADSR 4001 is a versatile ADSR/AD envelope generator.
It features both ADSR and AD modes, allowing for flexible envelope shaping.
In AD mode, it offers a looping function, controlled by gate logic, to create evolving, rhythmic patterns.
The module provides three timing ranges (short, medium, long) to accommodate a wide variety of musical applications, from snappy percussive hits to slow, evolving pads.
A manual gate button allows for hands-on experimentation and real-time control.
The retrigger input ensures precise control over the envelope cycles, ideal for complex rhythmic sequences.
The module outputs both normal and inverted envelope signals, offering even more creative possibilities in sound design.

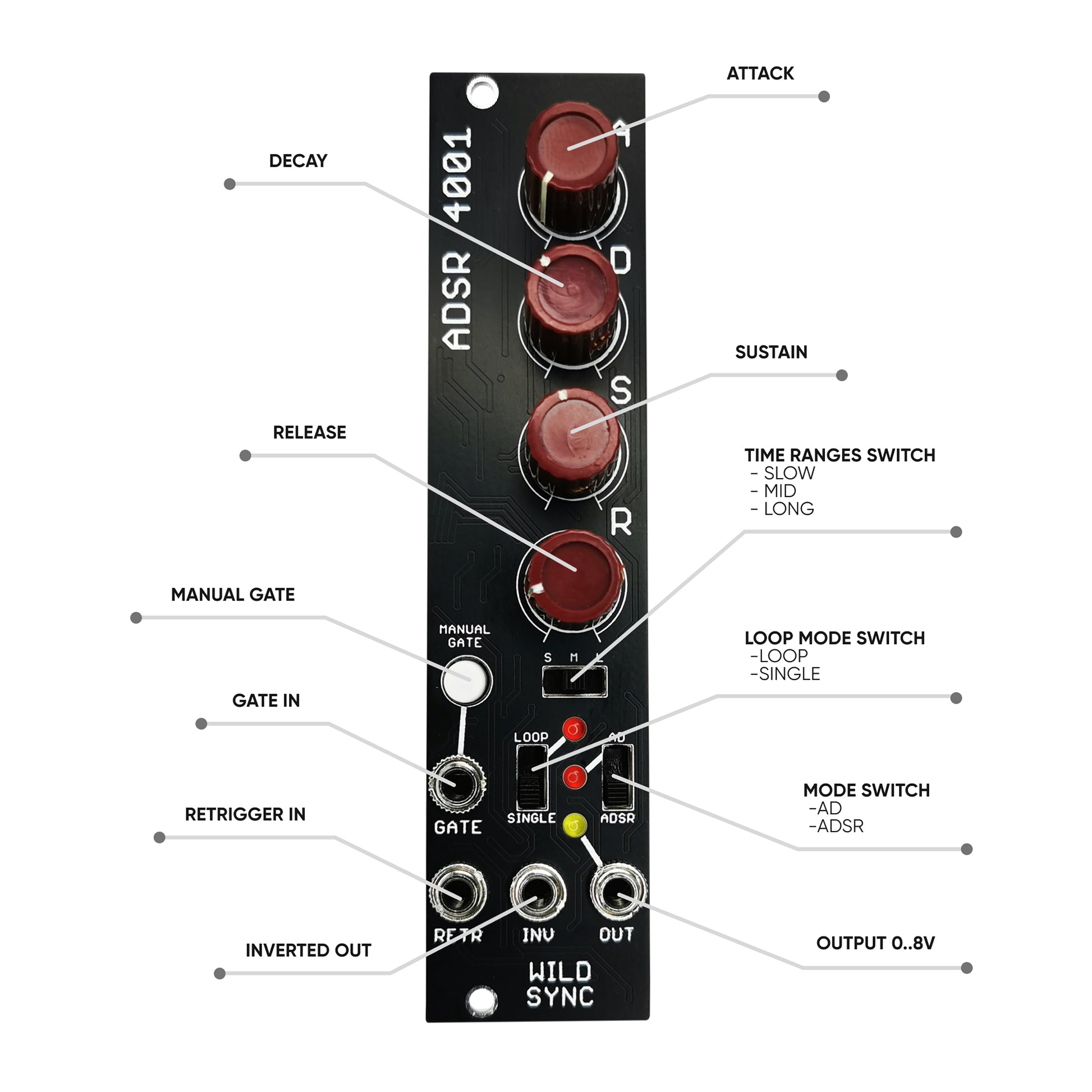

• ADSR Envelope Generator
• ADSR or AD mode
• LOOP in AD mode (which GATE logic control)
• Three timing ranges S/M/L
• Manual GATE button
• Retrigger input
• Normal and Inverted outputs
• Horizontal Pitch: 6 HP
• Depth: 30 mm deep

Current Draw
55 mA +12V
45 mA -12V

Available in Warsaw at Second Floor Stuff.
