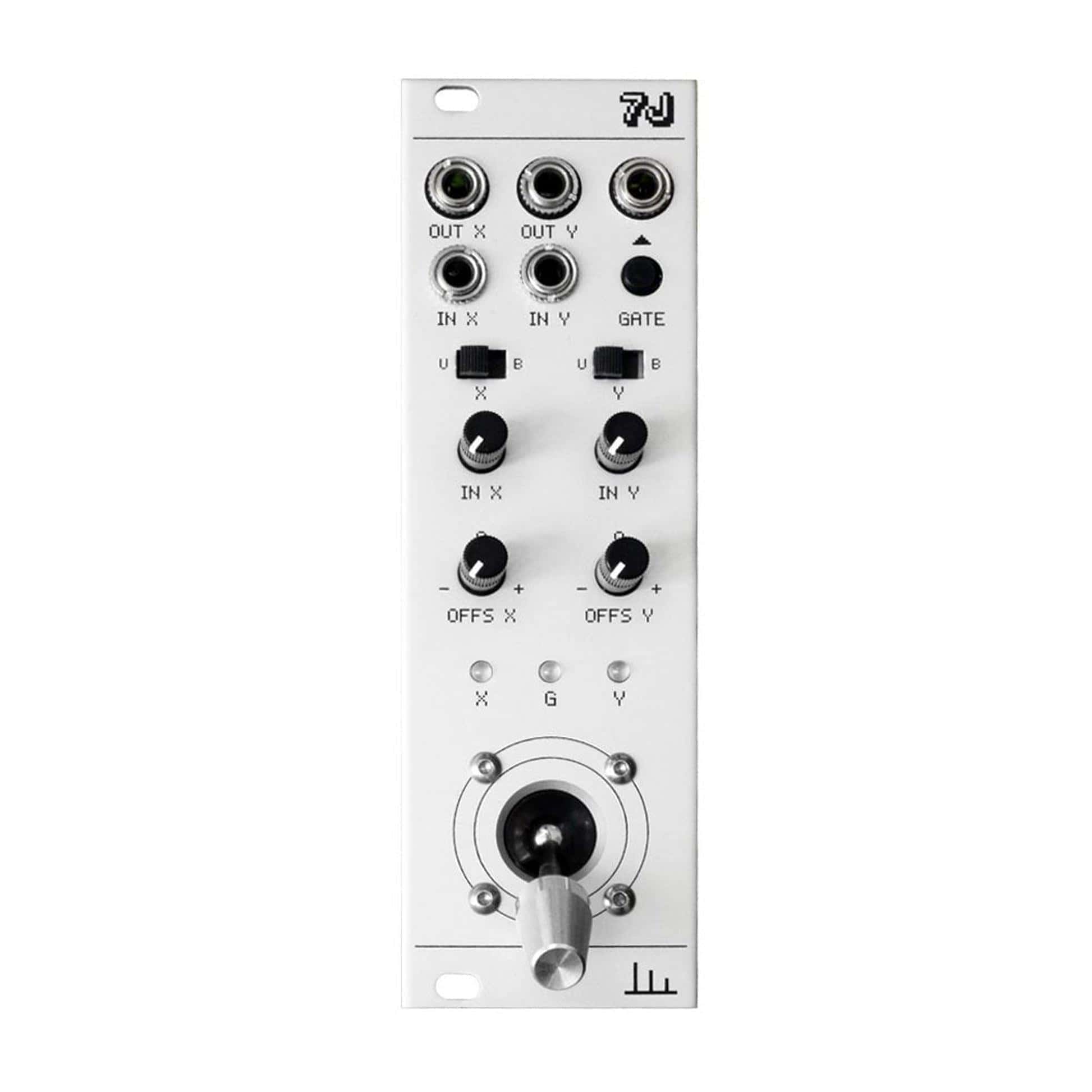

Transient Modules 7J - Joystick Controller

Transient Modules 7J

The 7J is a compact joystick controller module. For each axis the joystick can work as an attenuator or attenuverter, selectable via unipolar or bipolar mode switches. The inputs (normalled to +5V) have dedicated attenuators and both X and Y outputs are equipped with continuously variable offset control (-5 to +5V) for fine-tuning the voltage ranges independently. The 7J also has a manual gate generator on board. The joystick itself is without an auto-return to centre spring, perfect for hands-on expression and playful interaction.

Technical specifications:

• 8HP.
• 38 mm depth.
• Consumption: 35mA +12V; 25mA -12V.
